ECOGRACE Nomex Needle Felt Nomex Filter Bag

Views: 8     Author: Site Editor     Publish Time: 2017-12-18      Origin: Site

Introduction of the Nomex needle felt filter cloth
Nomex Needle Felt Filter Bag  mainly installed in the bag filter house with the temperature between 130 ~ 210 degree C, suitable PH value between 5~9, widely used in steel industry, carbon black industry, asphalt mixing industry , metal smelting industry .

Relevant specification for the Aramid Nomex needle felt :
Material: aramid ( Nomex ) fiber, supported with aramid ( Nomex ) scrim / fabric.
Weight: 350~650g/sq.m
Operation Temperature: Continues: ≤190℃; Peaks: 204
Surface treatment: singed ,  heat set, PTFE coating , PTFE membrane. Water and oil repellent treatment .
ECOGRACE customize the size of Nomex Filter bag  according to the requirements from the clients.

Main applications of Nomex needle Felt Nomex filter bags:
1. Chemicals Industries: Dryer system bag filter houses

2. Minerals Industries: Dryer bag houses in the gypsum and clinker cooler bag houses, etc.

3..Asphalt mixing plant bag filter system .
4. Metallurgy Industries: High temperature process collectors for lead oxide and electric arc furnace bag houses in the iron works, etc.

5. Building material Industries: handle the tail gas from vertical kiln of cement plants  ( filter bags for cement plants ) ,  dust filter bag for asphalt plant  ,  etc.

The properties of the Nomex filter media Nomex Needle Felt  :
1. High temperature resistance:
Recommended continuous operation temperature: ≤190 degree C (for getting a longest service life, the continuous operation temperature suggest not exceed 180 degree C); instant peaks: 204 degree C.
2. Stable size under high temperature after heat setting treatment: at the 220 degree C , the shrinkage not exceed 1%.
3. Fire proof.
4. Good abrasion and folding resistance.
5. Cheaper price when compare to other heat resistant filter cloths.
6. Long service life.

Note:
1. Maximum width: 2.2meters.
2. Both Nomex filter cloth packing in rolls and Nomex filter bags are available.

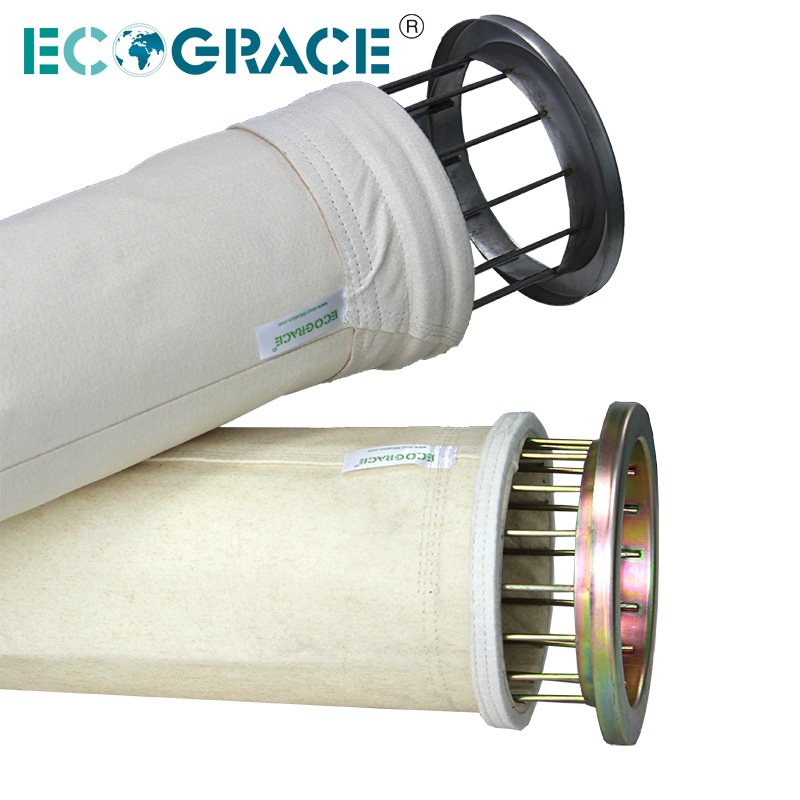

 nomex needle felt
