500 GSM Strong Acid Resistant Chemical Dry Process PPS Filter Cloth

PPS filter bags is the best choice for coal fired boiler / furnace in thermal power plant . The operation temperature of PPS filter bags is   up to 190  degree C.

Weight:
Treatment:
Quantity:
  • PPS500
  • ECOGRACE
  • PPS204
  • PPS filter cloth
  • 500GSM
  • 1.6mm
  • 160 degree
  • 190 Degree
  • Coking furnace/Kiln furnace/Power plant
  • 12 months
  • SGS, ISO
500 GSM Strong Acid Resistant Chemical Dry Process PPS Filter Cloth

PPS Filter Cloth Feature:

PPS filter is a type of high temperature resistance filter media, the temperature resistant up to 190 C,

PPS filter bags are with excellent chemical resistance except for oxidizing agent such as NO2 and Oxygen.

PPS Filter bags has very good acid resistance and good thermal resistance.

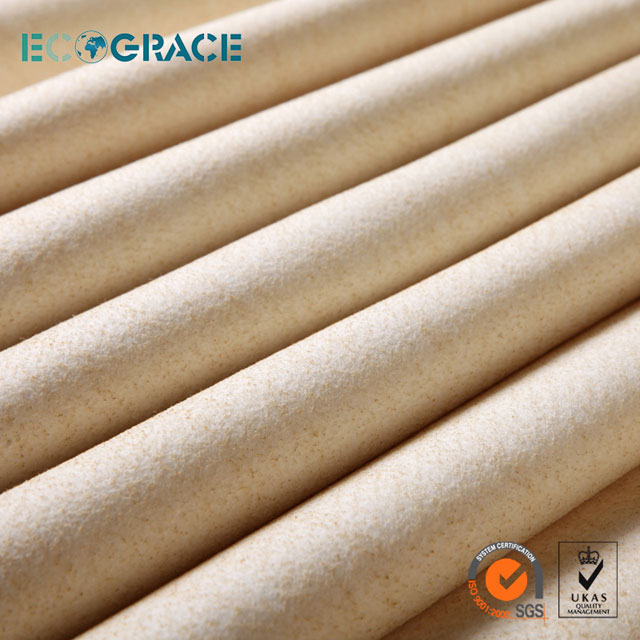

IMG_3798
PPS Filter Cloth Specification:



Series:

PPS500gsm

Material:

PPS (RYTON) 450 - 650g/sq.m needle felt

Fibre:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Scrim:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Weight:

400 - 650g/m2 (customized)

Finishing:

Heat setting, single side singeing, calendering (double sides finishing would be available upon request)

Specifications:

Customized according to drawing / sample

Packaging:

Polybag in cartons

Applications:

Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc.





 Operating Temperature (°C, dry)

 Abrasion Resistance

Hydrolysis Resistance

 Alkali Resistance

Organic Acid Resistance

Mineral Acid Resistance

Oxidation Resistance (15%)

PPS

190/ (200)

 Good

 Excellent

 Excellent

 Excellent

Excellent

Poor

Process

PPS Filter Cloth Application fields:

1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

 2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

GRACE FILTER  is expertise manufacturer of High temperature smoke / fumes standby filter bags , our advantage products are Ryton / PPS filter bags and NOMEX  filter bags.
