CMDC-80
ECOGRACE
CMDC503

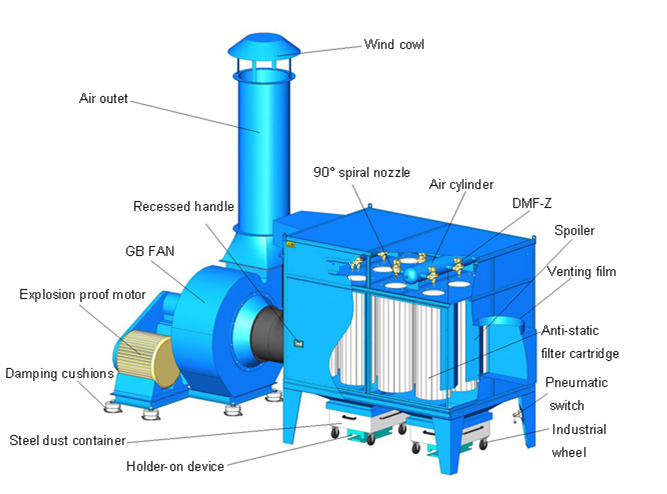

Cartridge Dust Collector Quick Details
1) Material: Carbon steel or stainless steel
2) Installed with pulse valves and control system
3) Block building structure, can be constructed to handle the required airflow
Cartridge Dust Collector Advantages ：
1) The cartridges are installed horizon.
2) Offer high efficiency with our air filter cartridges
3) Tool-free hole cap can be disassembled or replaced
4) Choose the proper air filter cartridge according to the property of dust.
Filter Cartridge Dust Collector applied in Sand blasting , Shot blasting , Polishing , In Aluminum Powder Spreading , Painting , welding fumes , etc.
Dust Filter Cartridge Filter Air Filter Cartridge Dust Collector
Typical Application:
Metal working, laser cutting, plasma cutting fumes, grinding, sand blast, welding fumes, graphite, pharmaceutical, chemical
Features:
(1) Modular structure for easy system set up on site. The major components are already installed before delivery.
(1a)Compact structure design to save expensive plant floor space.
(2) Standard container shipping for cheapest freight cost.
(3) Various cartridge filter media available for widest dust collection applications.
(4) Special designed panels between each layer of cartridges prevent dusts from upper cartridges falling to lower cartridges
(5) Longest filter life and highest filter efficiency.
(6) Tool-free cartridge cover makes filter change-out a very easy and clean work.
Product Descriptions:
Vertical cartridge collectors are designed for low airflow and heavy dust load applications. The filter cartridges are fastened on tube sheet by a special locking mechanism. The venturi on the top of tube sheet can improve pulse jet clean effects and reduce system pressure. The vertical mounted cartridges avoid possibility of dusts falling from upper filters to down filters, which allows for higher A/C ratio and longer filter life.
Cartridge Dust Collector Specification
MODEL | Weight(kg) | Unit | Cartridge No. | Filter area(m2) | L*W*H(mm) | Airflow (m/h) |
CDMC-12 | 1720 | 1 | 12 | 276 | 1021x 2275x 4513 | 8400 |
CDMC-24 | 2600 | 2 | 24 | 552 | 2042x2275x 4513 | 16800 |
CDMC-36 | 3640 | 3 | 36 | 826 | 3063x 2275x 4513 | 25200 |
CDMC-48 | 4840 | 4 | 48 | 1104 | 4084x 2275 x 4513 | 33600 |
CDMC-60 | 6100 | 5 | 60 | 1380 | 5105x 2275x 4513 | 42000 |
CDMC-72 | 6860 | 6 | 72 | 1656 | 6126x2275x 4513 | 50400 |
CDMC-16 | 2130 | 1 | 16 | 368 | 1021x 2275x 4996 | 11200 |
CDMC-32 | 3100 | 2 | 32 | 736 | 2042x 2275x 4996 | 22400 |
CDMC-48 | 4270 | 3 | 48 | 1104 | 3063x 2275x 4996 | 33600 |
CDMC-64 | 5580 | 4 | 64 | 1472 | 4084x 2275x 4996 | 44800 |
CDMC-80 | 7000 | 5 | 80 | 1840 | 5105x 2275x 4996 | 56000 |
CDMC-96 | 8360 | 6 | 96 | 2208 | 6126x 2275x 4996 | 67200 |
Cartridge Dust Collector Application
1) Welding fume, foundry
2) Food, pharmaceutical
3) Shot blasting
4) Tobacco, metal, painting
5) Energy
