Anti Static Filter Felt With Water Repellent Treatment Polyester Filter Bag

1. Material: Polyester filter material
2. Size:Diameter:120-180mm,Length:2000-8000mm
3. Working temperature: 130 degree C - 150 degree C
4. Finish; Heatset and Signed one side
5. Application; Cement industry, machinery manufacturing, iron and steel metallurgy, wood processing
Size:
130 x 3000 130 X 4500 130x6000 140x3000 140x4500 140x6000 150x6000 160 x 6000 160x3000 160x4500 Customization
Filtration Felt:
Polyester Dacron Terylene
Chemical treatment :
PTFE coating PTFE membrane Water Oil Repellen
Weight:
450GSM 500GSM 550GSM
Quantity:
Inquire Add to Basket

  • PE-130x4500

  • ECOGRACE

  • PE102

  • Polyester filter bag

  • 1.9mm

  • 120-180mm

  • 2000-8000mm

  • Cement Plant/Wood processing

  • 12 month

  • SGS, ISO

Cement Plant Dust Collector Polyester Filter Bag for Gas Disposal

Brief introduction of Sugar plant polyester filter bag:

Performance of Polyester bag filter:
Perform well at a gas temperature <150° C
Good electrical insulation
Good resistance to abrasion resistant performance
High strength, good elastic recovery performance
Good thermal stability
Polyester Bag Filter Polyester Bag Filter Polyester Bag Filter Polyester Bag Filter
Polyester bag filter is the most cost-effective filters in a working condition temperature < 150° C
Alkali-resistant performance is good, strong alkaline-resistant is common

Polyester bag filter is widely used in industries such as iron and steel metallurgy,
machinery manufacturing, cement industry, wood processing and other fields of dust collection process.

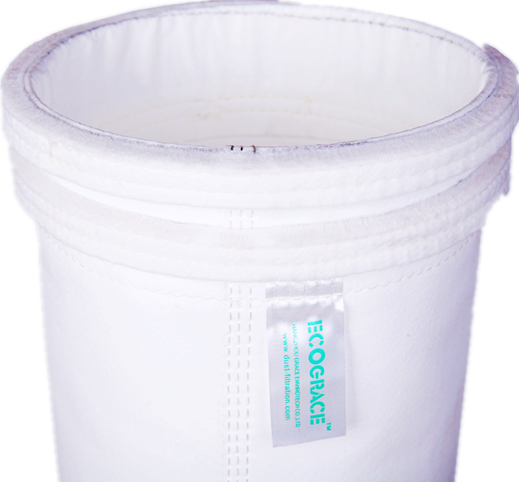

21

Specification of Polyester Filter Bag

Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.9

135 /150

singed on one side

Ployster,oil and water ,
dirt repellent finish filter

550g/m2

PE/PE

1.7

135 /150

singed on one side
oil  and  water  repellent  finish
cleanability  supporting  finish

Polyster+antistatic

550g/m2

PE/PE

1.7

135 /150

singed on one side , antistatic

PPS high-temperature resistant

550g/m2

PPS/PPS

1.7

190 /200

singed on one side

PTFE high-temperature
resistant corrosion prevention

700g/m2

PTFE/PTFE

1.2

250 /280

singed on one side , corrosion prevention

Polyster+PTFE membrance

550g/m2

PE/PE

1.7

135 /150

singed on one side,PTFE membrance

P84 high-temperature resistant

550g/m2

P84/P84

2.8

240 /260

singed on one side  corrosion prevention

 FMS high-temperature resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side

Chemical Properties of Polyester Filter Bag

Anti-acid Anti-alkali Anti-abrasion hydroly sis stability
Middle Middle Excellent Middle

Process
1) Our Dust filter bags are applied in dust collector systems in metallurgy plant,
alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum
electro analysis, tin, zinc, cooper and other rare metals
3) Baghouse filter filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff,
5) Asphalt mixing, concrete mixture, cements, ceramics, building materials, lime and plaster.
6) Dust filtration and purification in , mining, foodstuff processing, flour and timber processing.

Good Quality Industrial Polyester Dust Collector Filter Bag,Polyester filter bag
1 - Good quality polyester filter material made with advanced machinery
2 - Accordingly adjusted technical process
3 - Strict raw material control and products quality control
4 - Competitive price
Application000000000000
