Coal Boiler Fly Ash Dust Collector Filter Bags

PTFE PPS filter bags is the best choice for coal fired boiler / furnace in thermal power plant . The operation temperature of PPS filter bags is   up to 190-210  degree C.

Size:
Quantity:
  • PPS127x8065mm
  • ECOGRACE
  • PPS108


Coal Boiler Fly Ash Dust Collector Filter Bags


ECOGRACE PPS  Filter Bag Product Description:

Continuous gas continuous temperature is up to 160°C, instant heat resistant up to 190°C


Chemical structure is simple, strong and stable


Excellent performance of acid and alkali resistance!


Excellent hydrolysis resistance capability, and strong chemical stability


Good flame retardant and excellent heat resistance function

PPS Dust Filter Bag Specification:


Fiber
PPS filter fabric
Weight (g/ m2)
500
Thickness (mm)
1.6
Air permeability (L/m2/s)
200-300
Tensile strength
(N/5 20cm)
wrap
≥1250
weft
≥1350
Tensile Elongation(%)
wrap
≤30
weft
≤30
Broken strength (Mpa/min)
2.6
Continuous/Short time working temperature(℃)
160/190
Finishing treatment
Heatset and Singed One Side
Anti-acid/alkali/abrasion
Excellent

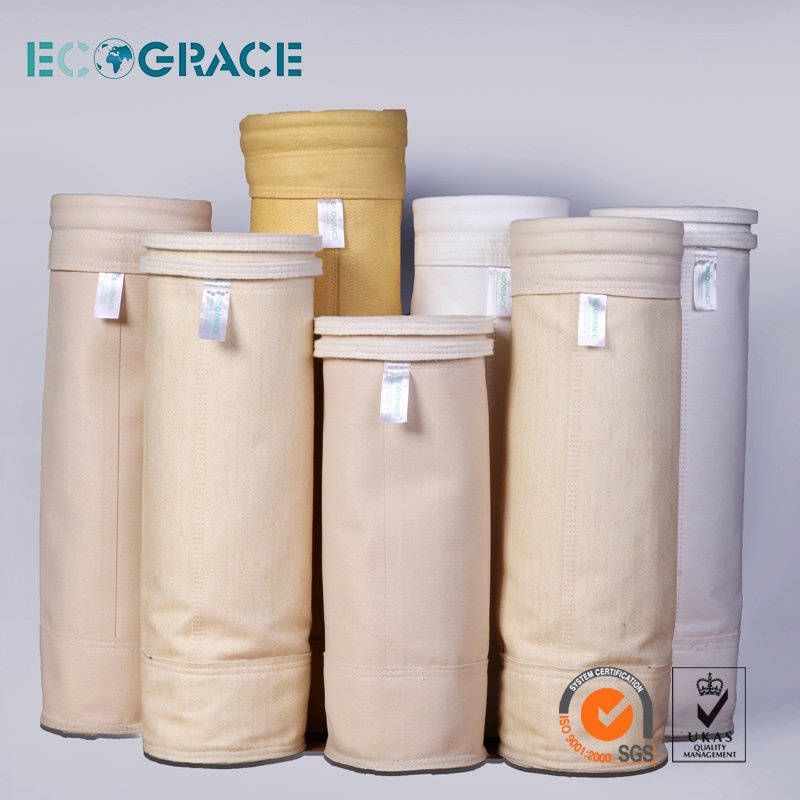

power plant filter bagsProcess
PPS filter bag Application:
• Coal - Fired Boilers bag houses , coal boiler bag filter
• Municipal Solid Waste Boilers and Waste incinerator baghouse filter
• Calciners / Catalysts
• Thermal power plant
• Waste to energy
• Iron and non ferrous Metal Industry.
dust filter bags
