Size: | |
---|---|
Availability: | |
Quantity: | |
D292 x L 10000
ECOGRACE
FG 302
ECOGRACE Fiberglass Filter Bag Made of Fiberglass Filter Cloth which is the most high cost effective dust collector filter bags for high temperature working condition dust filtration sytem in different industries .
Fiberglass Filter Cloth E- PTFE membrane Fiberglass Filter Bags :
ECOGRACE fiberglass filter cloth Filter Bags are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C.
ECOGRACE Fiberglass Filter Bags is working for the temperature up to 280 degree C . We have our special chemical treatment to increase the function of fiberglass filter bag in emission control , high temperature resistant , chemical resistant . It is now widely applied in following industry as following:
• Cement Plant .
• Coal Boiler
• Wast incinerators
• Carbon black production
• Refineries
• Steel Mills
Foundary / metal smelting furnace
Metal Smelting , metal alloys
Non ferros alloy plant
Paper plant ,
ECOGRACE developed and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .
ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and other dust collecting system.
Application of Fiberglass Filter Bag :
The applied industry including cement plant , carbon black processing , Silicon furnace , Ferrous Silicon Manganese smelting furnace , Coal Boilers , steel mill ,Ferro alloy plant ,etc.
Features of Fiberglass Filter Bag :
1. High temperature resistant , it can work for a long time under 260-280 °C.
2. Smooth surface is good for easy dust cake releasing , energy saving .
3. Steady size,non shrinking under proper temperature.
4. Intensity high, obstruction more than 99% code thickness.
E-Glass Fiber Finished filter cloth specification:
Item No. | Weave | Weight (g/m2) | Tensile strength (N/2.5cm) | Air permeability(cm3/cm2/s·127pa) | Finished | Running temperature (°C) | |
warp | weft | ||||||
EFA301 | double twill | 780-850 | > 2400 | > 2000 | 15-30 | PTFE | <260 |
EFI301 | double twill | 780-850 | > 2400 | > 2000 | 15-30 | PI | <260 |
EFB302 | 1/3 twill | 450-500 | > 2000 | > 1200 | 20-36 | GSP | <260 |
EFC302 | 1/3 twill | 340-380 | > 2000 | > 1200 | 20-36 | AR | <260 |
EFA303 | 1/3 twill | 320-360 | > 1400 | > 800 | 22-35 | PTFE | <260 |
EFC303 | 1/3 twill | 900-950 | > 1200 | > 700 | 22-35 | AR | <260 |
EFD502 | satin | 900-950 | > 3000 | > 2400 | 15-25 | PD | <400 |
EFA404 | double twill | 800-850 | > 2600 | > 2200 | 15-30 | PTFE | <260 |
EFE201 | satin | 550-600 | > 2200 | > 2000 | 20-35 | PG | <260 |
EFE203 | 1/3 twill | 550-600 | > 2200 | > 2000 | 20-35 | PG | <260 |
ECOGRACE Introduction :
ECOGRACE is filter cloth and filter bag manufacturer certified with SGS and ISO 9001:2008 . With more than decades manufacturing experience and thousands project at site service experience for dust collection system , dust collector filter bags , dust filter cloth , ECOGRACE is the leading Enterprise in Asia for the dust filtration / baghouse filtration area.
ECOGRACE Factory located in Hangzhou , which is 180km to Shanghai Seaport , 160 km to Shanghai International Airport, very convenient in transportation.

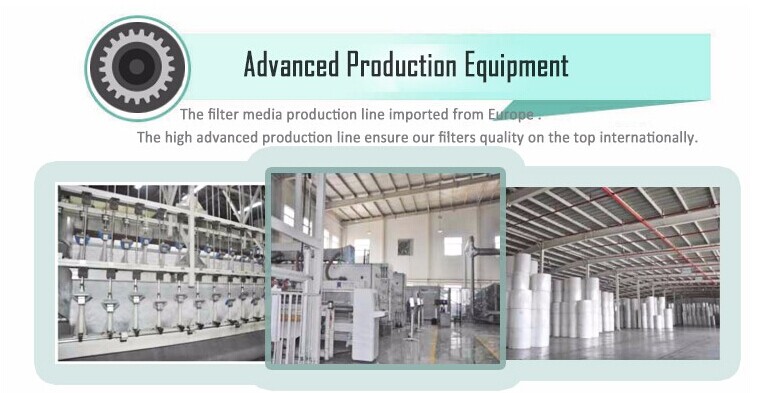

Our production capability is 2000pcs filter bags daily , dust collector equipment 40 sets monthly for smaller air flow model , 20 sets for bigger air flow model .
We will promise 24 hours delivery time for sample order , one weeks delivery time for the quantity order . All clients are welcome to visit us for mutual communication.
