Steel Plant Steel Smelting Induction Furnace Dust Filter Bags

Application: Steel Mill , steel plant , blast furnace filter system filter bags , sintering machine filter
Size : D 160 x L 3600mm ,or tailor produce size .
Working temperature : High temperature resistant.
Operation temperature :< 300degree C
Filter Media : Nomex Filtration Felt
Size:
Availability:
Quantity:
  • NOX 500

  • ECOGRACE

  • NO 500-160-36

ECOGRACE Specialized in steel plant Gas / Dust filtration systemdust filter bags .

We are very familiar with the steel mill , steel plant production process and the related air pollution control system or dust filtration system , and we have many success projects in steel plant in Asia and out of Asia , the filter bags are serving very well in baghouse filtration system in steel plant . Steel plant filter bags are the key and most advantage product of ECOGRACE .


1. NOX  filters is high temperature resistant Gas / Fume  filter bags

2. It is widely applied in fume / smoke filtration system in industry like  , Steel  melting furnace , steel mill filter bags ,  cement kiln , gypsum production and tobacco production.

3. High and stronger tensile strength and abrasion resistance keep our NOXfilter long working life.

4.Meanwhile ,we tailor produce for the filter size with clients dust collector design.


2. ECOGRACE is specialized in steel mill filter bags , including Steel plant blast furnace filtration system ,

Sintering machine steel plant filtration system ,


 Specification :


Compositions

NOX filter media

Weight (g/m2)

500

Thickness (mm)

1.96

Air permiability (m3/m2/min)

>17

Tensile strength (N/5×20cm)

warp

>800

weft

>1200

Tensile enlongation (%)

warp

<1.0

weft

2.40

Broken strength (Mpa/min)

≤20

Continuous working temperature (degree C)

180

Short time Working temperature (degree C)

240

Anti-acid

Medial

Anti-alkali

Excellent

Anti-abrasion

Excellent

The stability of water solution

Medial

Finishing treatment

Singeing, het-setting, calendaring

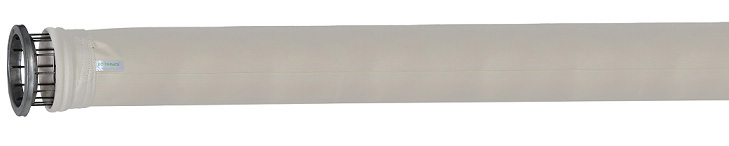

steel plant filter bag


industrial filter bags

ECOGRACE filter bag
