Woodworking Plant Cyclone Dust Collector

We offer a full range of dust collector system designs and filter media choices to solve the toughest pollution control problems involving high temperatures, high pressures and high corrosives. Capacities air flow from 4000 M3/H to 200,000.00 M3/H.

Availability:

Quantity:


Inquire Add to Basket

Model:
CDC500
Brand:
ECOGRACE
Code:
CDC501

Product Description

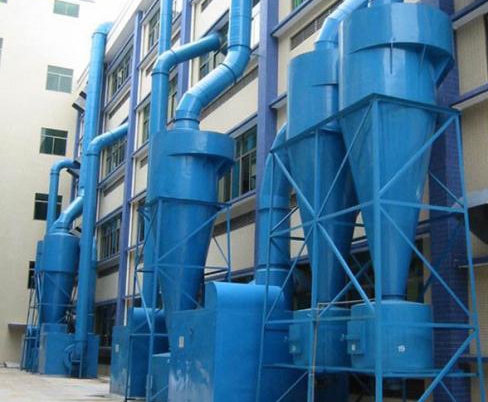

Woodworking Plant Cyclone Dust Collector

Quick Details of Cyclone Dust Collector

1. Cyclone dust collector usually work as pre-filter before baghouse dust collector .

2. Cyclone dust collector will remove the heavey and bigger particles in the first filter process.

3. It will increase the working efficiency of baghouse dust collector so that protect the bag dust collector and extend the working life of bag dust collector.

4. Saving the operation and running cost in dust filtration process.

Advantages of Cyclone Dust Collector

1. Size is smaller , saving floor area, price is cheaper than other type of dust collector

2. Easy and convenient operation and maintenance.

3. Saving energy

4. Better protect the fabric dust collector and extend the working life of baghouse dust collector ,savinig the running cost of the filter system.

Specification of Cyclone Dust Collector

Model No.	Air volume (m3/h )	Inlet air speed (m/s )	Filter Efficiency (%)	Resistance (Pa)	Outline dimension (LX WX H)mm	Weight (Kg)
CDC-3.9 CDC-5.1 CDC-5.9 CDC-6.7 CDC-7.8 CDC-9.0	790-1080 1310-1820 1800-2450 2320-3170 3170-4320 4200-5700	11-15 11-15 11-15 11-15 11-15 11-15	80-94 80-94 80-94 80-94 80-94 80-94	75-147 75-147 75-147 75-147 75-147 75-147	505 x 436 x 2390 647 x 567 x 2812 742 x 654 x 3099 837 x 742 x 3384 968 x 862 x 3774 1110 x 993 x 4196	91 152 180 253 338 420

Model No.

Air volume

(m3/h )

Inlet air speed (m/s )

Filter

Efficiency

(%)

Resistance

(Pa)

Outline dimension

(LX WX H)mm

Weight

(Kg)

CDC-3.9

CDC-5.1

CDC-5.9

CDC-6.7

CDC-7.8

CDC-9.0

790-1080

1310-1820

1800-2450

2320-3170

3170-4320

4200-5700

11-15

80-94

75-147

505 x 436 x 2390

647 x 567 x 2812

742 x 654 x 3099

837 x 742 x 3384

968 x 862 x 3774

1110 x 993 x 4196

152

180

253

338

420

Applications of Dust Collector

1. Gas / Fume filtration for industrial boiler .

2. Metallurgy Furnace fumes filtration

3. Woodworking plant

4. Machine processing plant

5. Powder processing plant

6. cement production process
